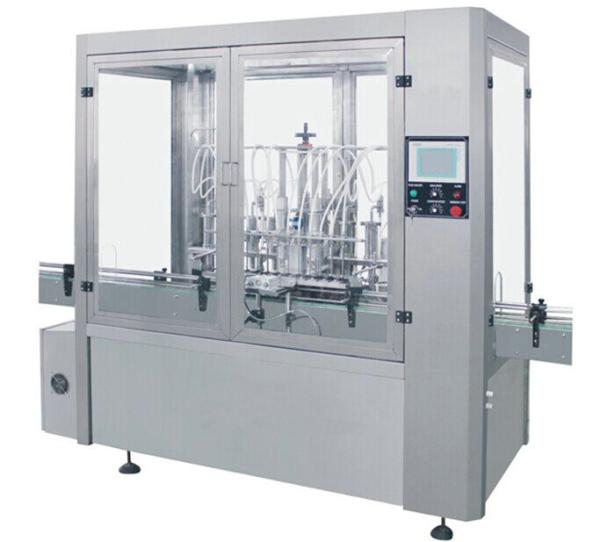

0.8KW Automatic Liquid Bottle Filling Machine

Description:

The Automatic Liquid filling and capping machine is high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 50 to 1000 ml.

Specifications:

Applications:

The machine special for filling liquid such as, suspend liquid, mineral water, alcohol, vinegar, soy sauce, oil, syrup, etc.

Quick Detail:

The machine is suitable for filling different type of liquid under 100-1000ml volume. The capacity is 200-3600bottles/hour.

Competitive Advantage:

Advanced design

• The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.
• Short filling circle, high production capacity.
• Changing filling circle, high production capacity.
• User may choose the filling volume and decide the filling heads per own production capacity.
• The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.
• Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

• Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.
• Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.
• Stronger PLC software support, may realize the ideal filling operation.
• Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

• Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.
• The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
• Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.
• The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
• More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.
