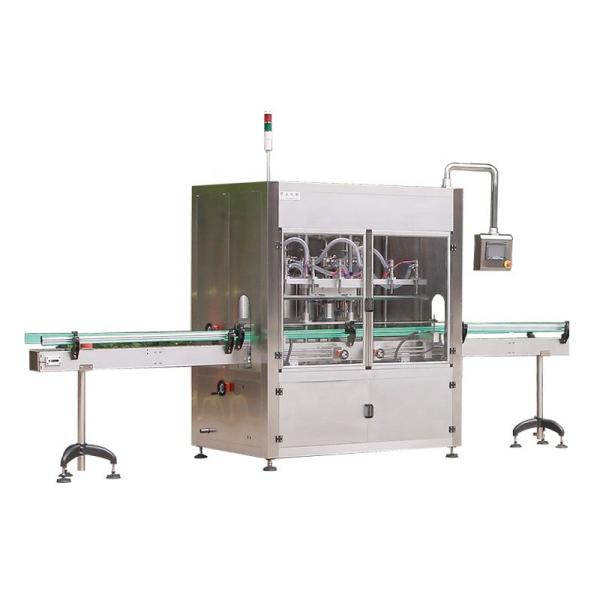

Pneumatic Driven Monoblock Automatic Milk Filling Line
Product Description
Main Feature
1. It’s fully automatic washing, filling and capping combined
machine, guarantee the production continuity and reliability, more
advanced in technique, smaller in space occupied, more compact in
structure.
2. Strong adaptability: because all parts have a height adjusting
device, the height of bottle can be adjusted within the range of
170~320mm, change few parts, such as bottle stirring wheel and
guiding plate, to suit different bottle diameter in the range of
50~100mm.
3. This machine has a complete set of fully automatic and reliable
protection system. There is a security and protection device under
bottle receiving wheel. In case bottles crowding or overload
happens at bottle receiving wheel, the machine would stop running
at once.
Introduction
The filling line is composed of bottle washing machine, filling
machine and sealing machine, fully automatic, smaller in space
occupied, more compact in structure, used for plastic bottle or
glass bottle, can filling mineral water, fruit juice, health drink,
soy sauce, milk, vinegar, wine and so on. It is the ideal filling
line for food and drink factories.
Model List
| MODEL | FILLING CAPACITY | FILLING VOLUME | POWER | WEIGHT | DIMENSIONS |
| GWB-8-8-3 | 500-1500BPH | 250-1500ML | 3KW | 1800KG | 2150*1550*2000mm |
| GWB-12-12-6 | 2000-5000BPH | 250-1500ML | 4.5KW | 2000KG | 2300*1750*2500mm |
| GWB-18-18-6 | 4000-6000BPH | 250-1500ML | 5KW | 3500KG | 2650*1800*2500mm |
| GWB-24-24-8 | 8000-10000BPH | 250-1500ML | 6.5KW | 5500KG | 3000*2000*3150mm |
| GWB-32-32-10 | 12000-15000BPH | 250-1500ML | 8.5KW | 8000KG | 3500*2200*3150mm |
